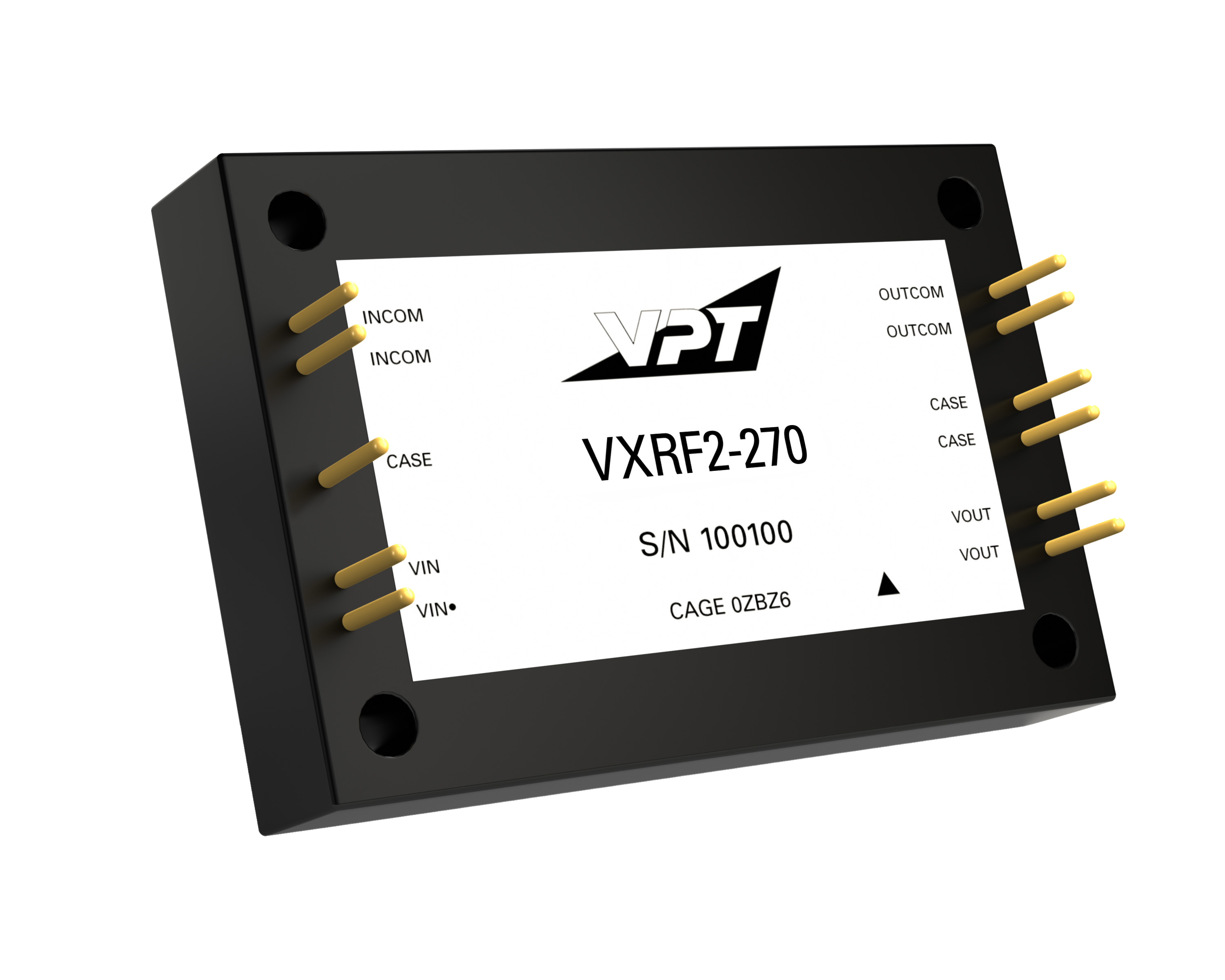

VXRF2 270 No Shadow Transparent

EMI Filters

VXRF2-270 Series

The VXR Series of EMI filters is the latest and most advanced offering in VPT’s extensive line of high-reliability COTS products. Building on a proven design heritage, the VXRF2 features low resistance, high attenuation, and a wide input voltage range. When paired with a VXR Series DC-DC converter, the VXRF2 passes specific DO-160 and MIL-STD-461 conducted EMI requirements.  The VXR product family is optimized for a broad range of applications from military ground vehicles to commercial and military aircraft.

Output Power/Current2 A
Output Voltage270 V
Nominal Input Voltage270 V
Continuous Input Voltage Range0 V to 400 V
# of Outputs1
Temperature Range-55°C to +105°C
