Accessory Modules

VPTPCM Series

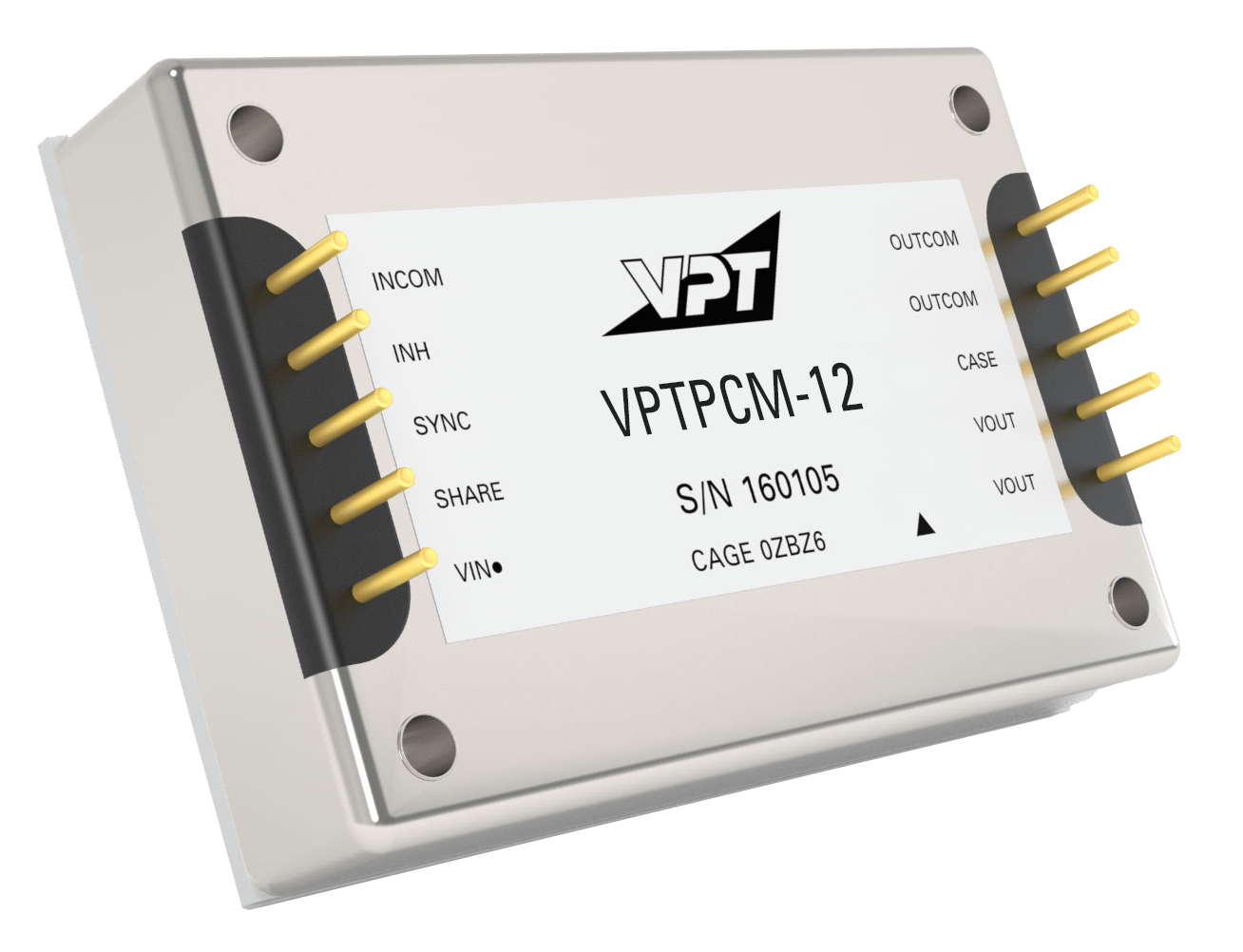

The VPTPCM-12 is a Pre-Conditioning Module which allows VPT’s DV and VPT series isolated DCDC converters to operate over an extended input voltage range and provides compliance to both MILSTD-704 and MIL-STD-1275 input power requirements. A wide input voltage range accommodates both nominal 12V and 28V inputs including avionics, mobile, ground systems, and other applications. A high efficiency design reduces input power requirements and eases thermal management.

Select Output Voltage

Output Power/Current120 W
Output Voltage28 V
Nominal Input Voltage28 V
Continuous Input Voltage Range9 V to 40 V
# of Outputs1
Temperature Range-55°C to +100°C
Thermal PadsTP-011 or TP2-011
