VSCF1 28

VSCF1-28 Series

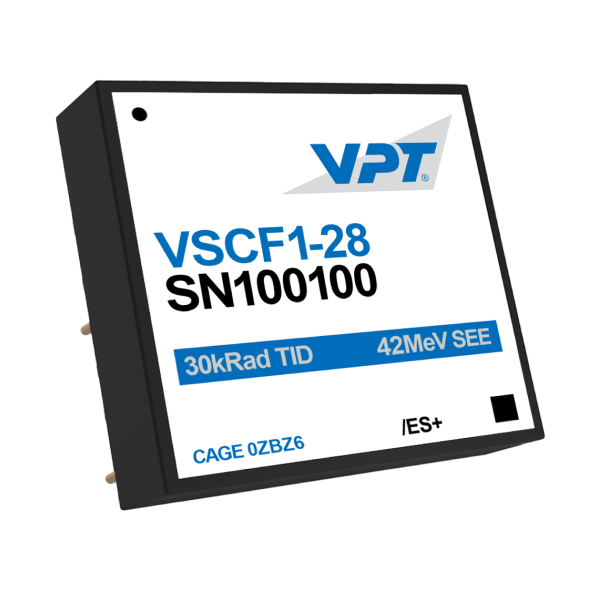

VSCF1-28 EMI Filter

The VSCF1-28 is a commercial off the shelf EMI filter designed for the ‘New Space’ market. The VSCF1-28 EMI filter is designed to filter the conducted emissions of multiple VSC series DC-DC converters up to its current rating, providing compliance to MILSTD-461 C-G for conducted emissions. Testing is to JESD22, MIL-STD-810, and MIL-STD-883. The VSCF1-28 is intended for smaller satellites in low earth orbits (LEO), and NASA Class D missions where the balance of cost and guaranteed performance is critical.

Select Output Voltage

Output Power/Current1 A
Output Voltage28 V
Nominal Input Voltage28 V
Continuous Input Voltage Range0 V to 50 V
# of Outputs1
Total Dose (TID)Radiation Immune
Single Event Effects (SEE)Radiation Immune
Temperature Range-55°C to +100°C
SMD#TBD
VSCF1-28/ES+

Stock: 10

Login/Register To Purchase

Federal regulations limit the online sale of this product to U.S. businesses or an authorized VPT distributor that have a verified account.
