VPTHVM-270 Series

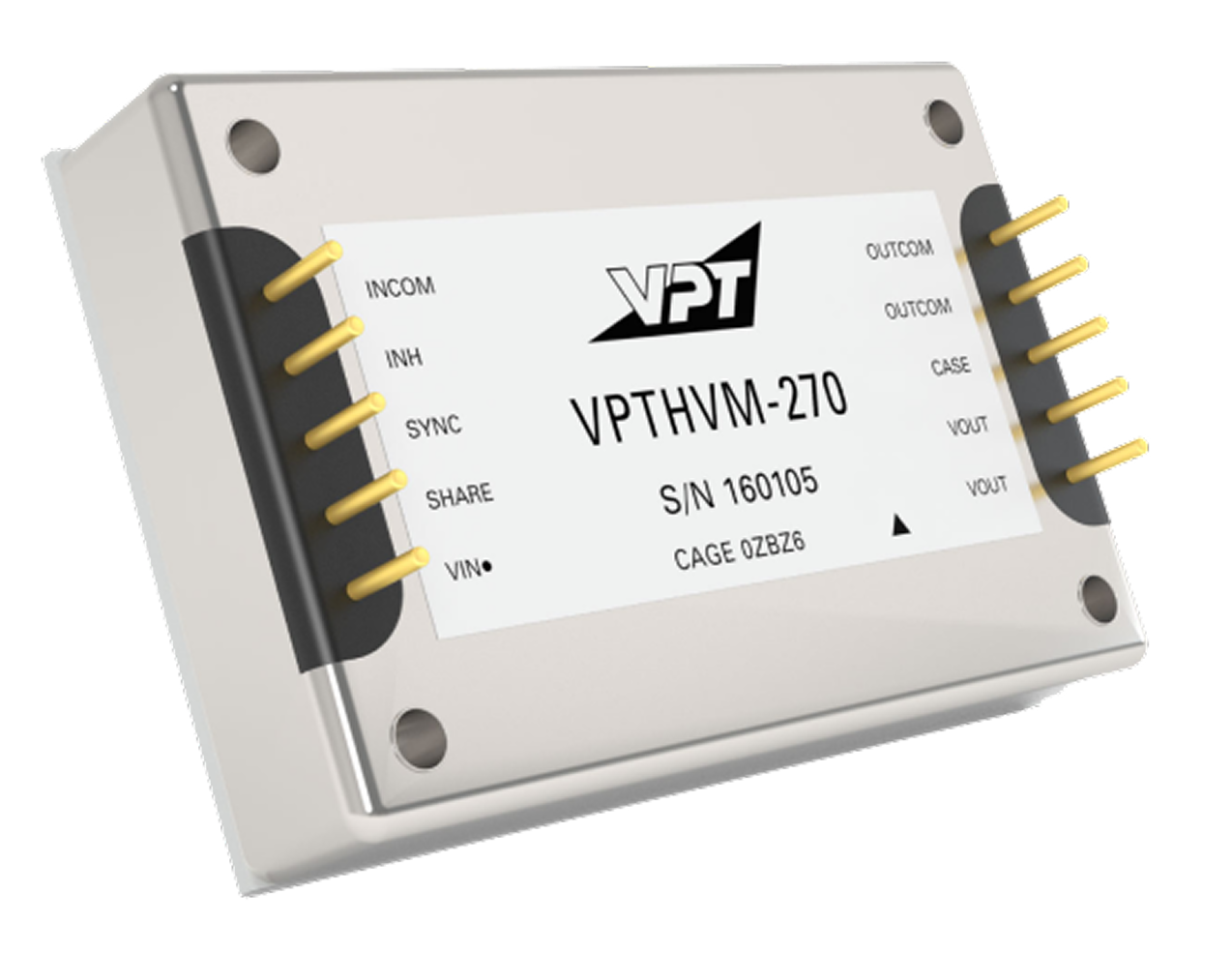

VPTHVM-270 Bus Converter Module

The VPTHVM-270 is an Isolated Regulated Bus Converter Module which allows VPT’s DV and VPT Series 28V input DC-DC converters to operate from a nominal 270V DC input. A wide input voltage range accommodates MIL-STD-704 input power requirements for avionics, mobile, ground, and other applications. A regulated high efficiency design reduces input power requirements and eases thermal management.

Select Output Voltage

Output Power/Current200 W
Output Voltage27 V
Nominal Input Voltage270 V
Continuous Input Voltage Range180 V to 350 V
# of Outputs1
Temperature Range-55°C to +100°C
Thermal PadsTP-011 or TP2-011
