DC-DC Converters

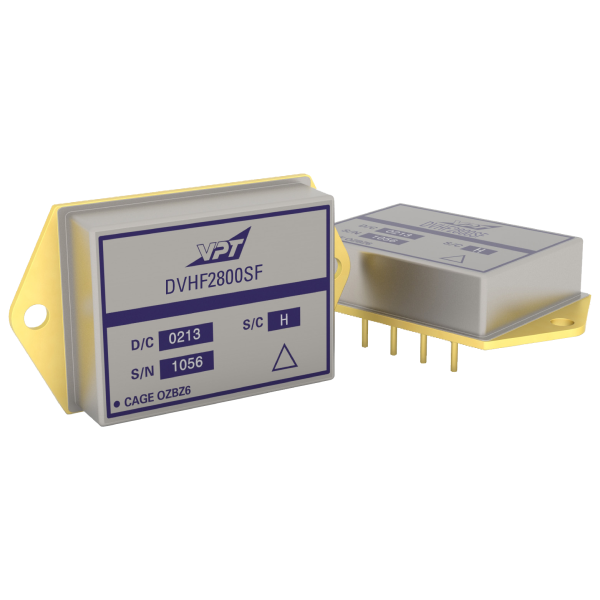

DVHF2800S Series

The DVHF Series of high-reliability DC-DC converters provide decades of successful critical mission support. Operable over the full military (-55 °C to +125 °C) temperature range with no power derating, the DVHF Series unique input, and output filters dramatically reduce input and output noise performance.

View Datasheet Request a Quote Contact Sales

Select Output Voltage

1.9 V 3.3 V 5 V 5.2 V 5.7 V 12 V 15 V 18 V 28 V

Output Power/Current	8 W, 10 W, 15 W, 20 W
Output Voltage	1.9 V, 3.3 V, 5 V, 5.2 V, 5.7 V, 12 V, 15 V, 18 V, 28 V
Nominal Input Voltage	28 V
Continuous Input Voltage Range	15 V to 50 V
# of Outputs	1
Temperature Range	-55°C to +125°C
SMD#	5962-03243
EMI Filter	DVMC28 or DVMH28
Thermal Pads	TP-002 or TP2-002
