VPT Adds 15 Amp Point of Load DC-DC Converter to Space Family of Power Conversion Products
VPT is the only manufacturer to now offer two point of load converters that are MIL-PRF-38534 Class H and Class K Qualified, 100K rad hard, and available off-the-shelf.

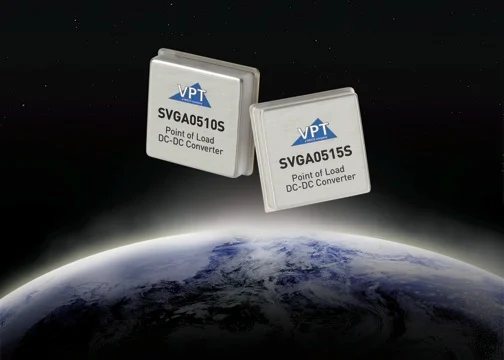

BLACKSBURG, VA, May 8, 2012 - VPT Inc., a HEICO company (NYSE:HEI.A) (NYSE:HEI), announced today the availability of a new point of load power converter designed and manufactured for use in the extreme environment of space. The new SVGA0515 Series point of load DC-DC converter is now qualified to MIL-PRF-38534 Class H and Class K by the Defense Logistics Agency. The SVGA delivers up to 50W of output power, is radiation hardened to 100 krads (Si) including Enhanced Low Dose Rate Sensitivity (ELDRS), and is characterized to SEE of 85MeV/mg/cm2.
The SVGA Series is the latest addition to VPT's existing line of space DC-DC converters. The SVGA functions as a non-isolated, regulated buck converter that steps down the voltage at the point of use in a distributed power system. From a single, small size, high current package, this module saves significant board space, weight, and cost for power systems headed for LEO, MEO, GEO, and deep space missions.
"To reduce weight and component cost, distributed power systems are relying more on smaller, less expensive point of load converters used in conjunction with the larger, traditional, isolated DC-DC converters. Customer response to our space-qualified, off-the-shelf, point of load DC-DC converters has been phenomenal," explained Monty Pyle, Executive Director of Sales. "We've been asked for a higher current option without the need to waste space and weight stringing together multiple POL converters. We're proud to announce that this product will satisfy the needs of space customers requiring higher power levels and stringent radiation requirements."
The performance of the SVGA0515S in space systems is guaranteed by design through extensive worst case analysis, the use of hardened components, and Radiation Lot Acceptance Testing (RLAT) of semiconductor components.
Features:
- Up to 50W (15A) output power
- Guaranteed TID performance to 100 krads (Si) including ELDRS, per VPT's DLA-approved RHA plan specified per MIL-PRF-38534, Appendix G, Level R.
- SEE characterized to 85MeV/mg/cm2 with no dropouts, shutdowns, latch up or burn out
- 1.075 square for high power density -- >160W/in3 no need to sync or share multiple units
- Operates from 5V input
- Adjustable output voltage from 0.8V to 3.4V with extreme accuracy: ±1.5%
- High efficiency up to 94%
- Synchronous rectification topology
- Extremely fast transient step recovery just 60µSec
- Hybrid thick-film technology
- 100% hermetic
- Output inhibit control
- Low output noise
- No use of opto-isolators
- Worst case analysis, stress, radiation and reliability reports available1
- Characterization performed at both the component level and at the SVGA series hybrid converter level
Compliances and Certifications:
- Qualified to MIL-PRF-38534 Class H and Class K
- VPT's Radiation Hardness Assurance (RHA) Plan certified by DLA to MIL-PRF-38534 Appendix G
- MIL-PRF-38534 element evaluated components
- MIL-STD-704A input voltage requirements
- MIL-PRF-38534 Class H and Class K facility manufacturing
- ISO-9001
- MIL-STD-883 environmental screening
- MIL-STD-461 C-F when used with an EMI filter
- DLA Land and Maritime SMD 5962-12219 currently in release and approval process
The SVGA is packaged in hermetically sealed metal cases for reliable power delivery through the extreme temperature, shock, vibration, and radiation environments of space travel. The radiation hardened SVGA modules are available with pricing beginning at US $2,400.00 in OEM quantities. Complete technical details are available at www.vpt-inc.com. For further information, contact VPT at (425) 353-3010.
